Prozessor: |
Intel Core i7 6700K (delid @ Thermal Grizzly Conductonaut Liquid Metal) |
|
| Codename: | Skylake |
| Architekt.: | 1 CPU - 4 Kerne - 8 Threads |
| Revision: | R0 |
| Tech.: | 0.0140 µ |
| F.M.S.: | 6.E.3 - Ext. 6.5E |
| Instruct.: | MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, EM64T, VT-x, AES, AVX, AVX2, FMA3, TSX |
| Socket: | Socket 1151 LGA |
| CPU-Takt: | 800.4 MHz |
| Multiplik.: | x8.0 |
| FSB: | 100.0 MHz |
| L1 Cache: | Data: 4 x 32 KBytes / Inst: 4 x 32 KBytes KBytes |
| L2 Cache: | 4 x 256 KBytes KBytes |
| L3 Cache: | 8 MBytes KBytes |
| Besonderh.: | Open Multiplier |
| Kühlung: | EK-Supremacy EVO RED Edition (Red LEDs) |
| Temperatur: | Idle: 23°C
Load: 55°C |
| CPU-Z Vers.: | 1.77.0
|
|
|
MainBoard: |
MAXIMUS VIII FORMULA |
| Chipsatz: | Intel Z170 |
| Northbridge: | Intel Skylake rev 07 |
| Southbridge: | Intel Z170 rev 31 |
| Revision: | 1.xx |
| BiosVersion: | 1701 |
| Anschlüsse: | |1 x U.2 port
|1 x Aura RGB Strip Headers
|2 x USB 3.0 connector supports additional 4 USB 3.0 ports
|2 x USB 2.0 connectors supports additional 4 USB 2.0 ports
|2 x SATA Express connector, Compatible with 4 x SATA 6.0 Gb/s ports
|1 x M.2 Socket 3 with M Key design
|4 x SATA 6Gb/s connector(s)
|
|6x Fan Connector:
| 1x CPU
| 1x CPU Opt
| 4x Chassis
|
|3 x Thermal sensor connector
|1 x Water Pump header
|1 x LN2 Mode jumper
|
|1 x 24-pin EATX Power connector
|1 x 8-pin ATX 12V Power connector
|
|1 x Front panel audio connector (AAFP)
|1 x System panel (Q-Connector)
|1 x MemOK! button
|1 x Power-on button
|1 x Reset button
|1 x ROG extension header
————— |
| extern: | |1 x PS/2
|1 x DisplayPort
|
|1 x HDMI
|1 x LAN
|
|1 x S/PDIF
|5 x Audio
|1 x USB 3.1 Type-A
|1 x USB 3.1 Type-C
|
|6 x USB 3.0
|1 x Clear CMOS
|2 x Wi-Fi antenna port
|1 x USB BIOS Flashback Button
————— |
| Temperatur: | Idle: 23°C
Load: 48°C |
| Kühlung: | Water
|
|
|
RAM: |
8192 MB G.Skill (PC4-25600U)
8192 MB G.Skill (PC4-25600U) |
| Size: | 16384 MB |
| Typ: | DDR4-SDRAM |
| Timing: | 16.0-18-18-38 |
| RAM-Takt: | 1600.9 MHz |
| Voltage: | 1.35V |
| Kühlung: | Original Heatspreader |
|
|
Grafikkarte: |

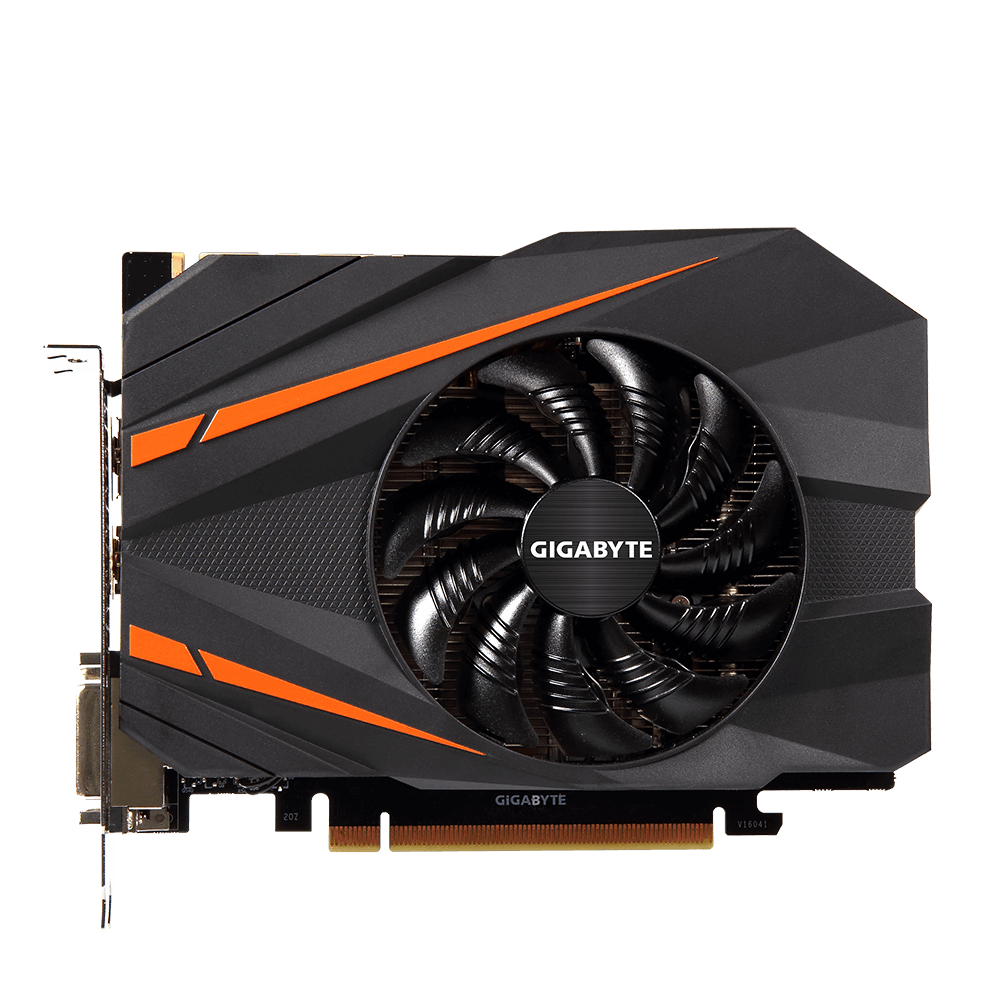

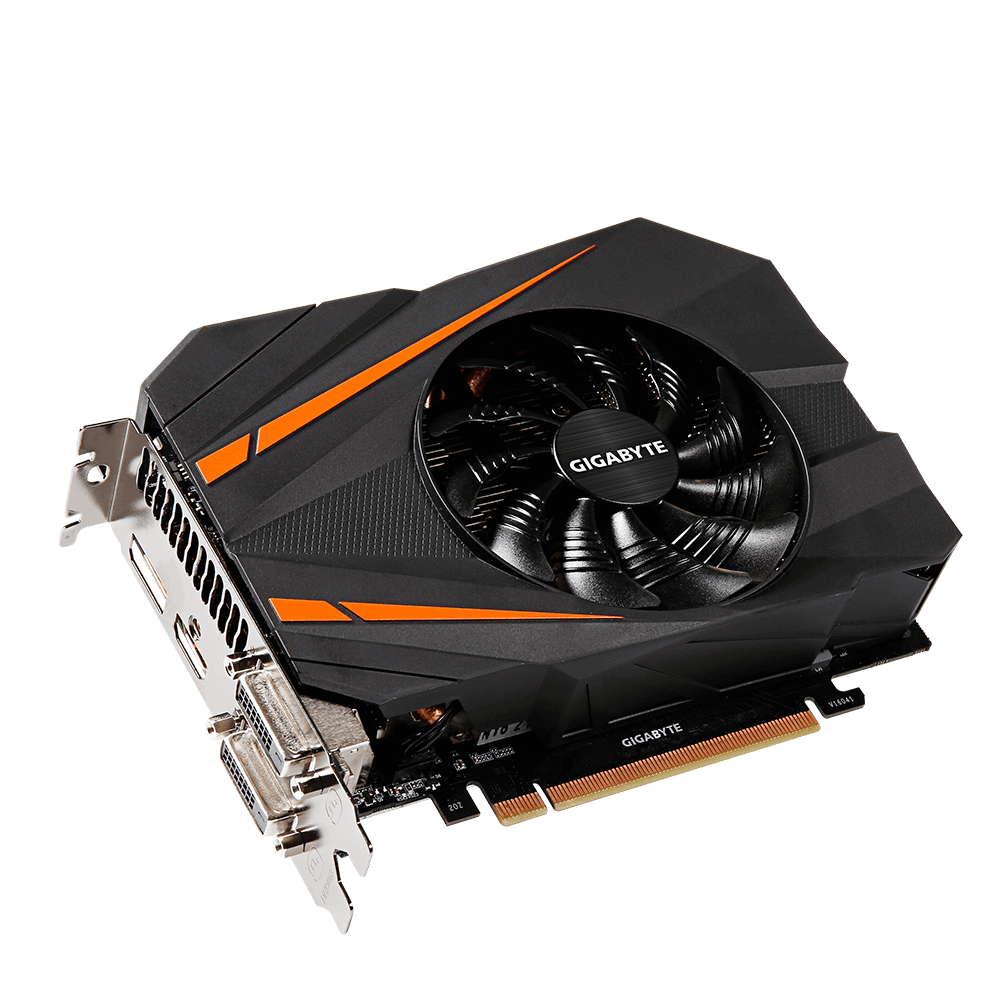

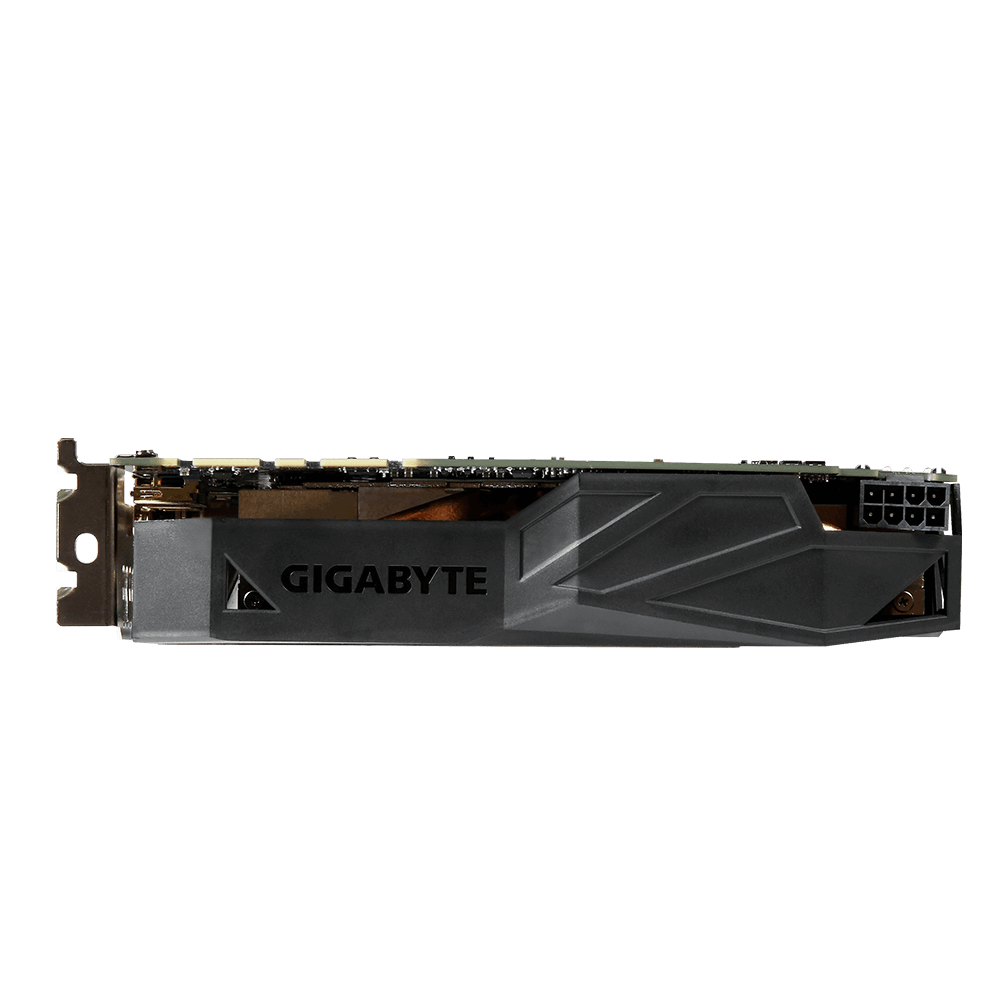

nVidia GeForce GTX 1070 OC Water Cooled |
| Subvendor: | Gigabyte |
| Chipsatz: | GP104 Rev. A1 |
| Tech.: | 16 nm |
| RAM: | 8192 MB GDDR5 |
| RAM-Takt: | 2002 MHz (2002 MHz) = 0% |
| Width: | 256 bit |
| Bandwith: | 256.3 GB/s |
| Core-Takt: | 1531 MHz (1531 MHz) |
| Shaders: | 1920 (DX 12 (12_1)) |
| Fillrate: | 98.0 GPixel/s | 183.7 GTexel/s |
| Bus: | PCI-E 3.0 x16 @ x16 1.1 |

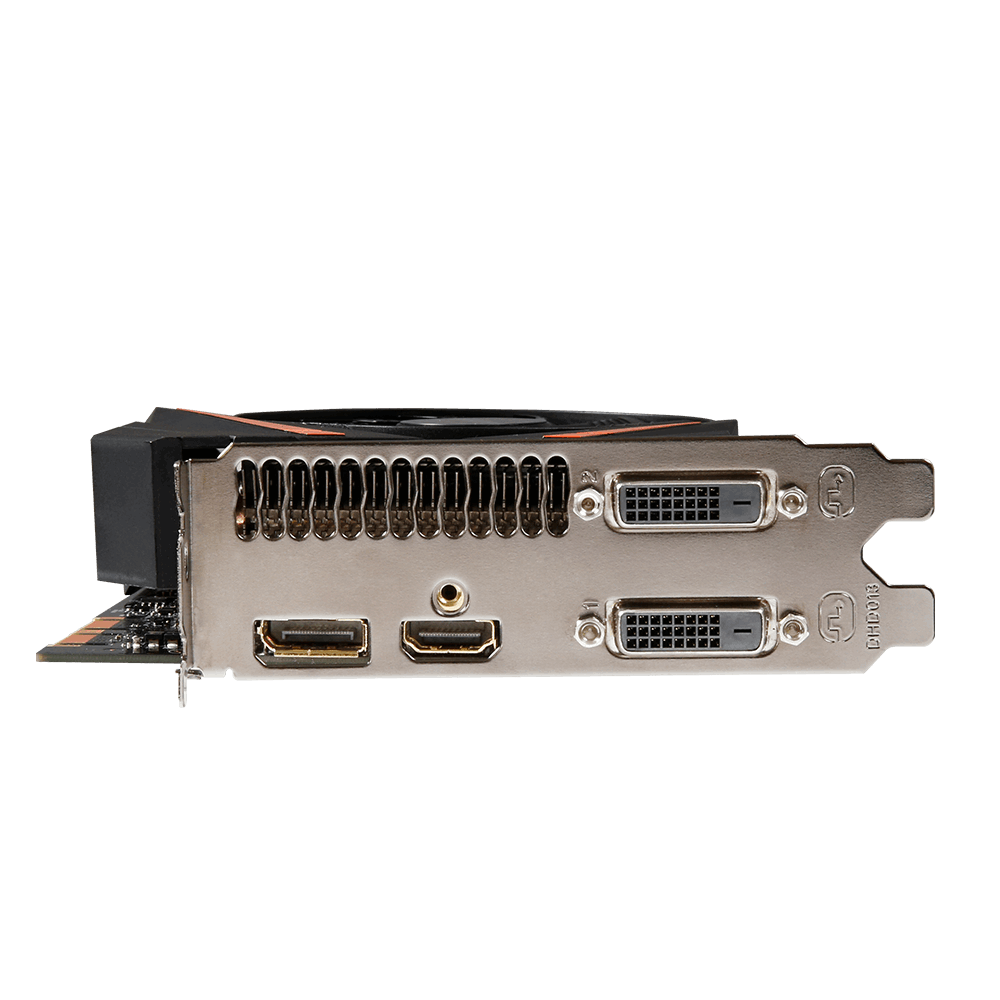

| Anschlüsse: | |2x DVI
|1x HDMI 1.4a
|2x Mini DisplayPort 1.2
————— |
| Temperatur: | Idle: 25°C
Load: 45°C |

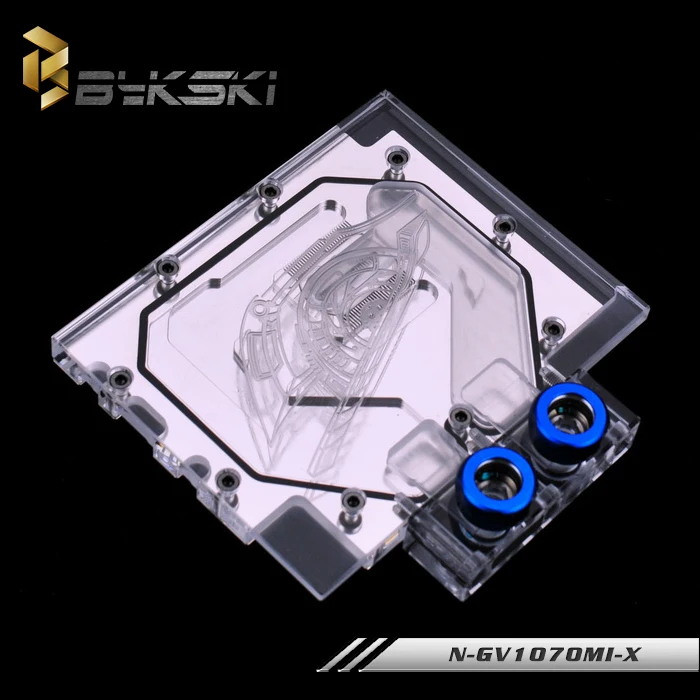

| Kühlung: | BYKSKI Full Cover Water Block RGB |
| Treiber, Ver.: | (ForceWare 369.09) / Win10 64 |
|
|
Sound: |
7.1 ASUS SupremeFX 2015, DTS Connect (Built-In) |
| Signalproz.: | Realtek ALC1150 |
| Kanäle: | 8-Channel Audio I/O
1x S/PDIF Out (Optical) |
| Soundmodus: | 7.1 Channel Surround |
| Eingänge: | 1x Mic |
| Ausgänge: | 8-Channel Audio I/O
1x S/PDIF Out (Optical) |
| Boxen: | Teufel Concept C200 USB
Teufel Concept E400 (Currently In Use With PlayStation 4 & Panasonic VIERA TX-P50GTW60) |
| Headset: | V-MODA Crossfade M-100 |
| Features: | Supports Jack-Detection, Multi-Streaming und Front Panel Jack-Retasking
|
|
|
GehäuseTyp: |
Mid-Tower |
| Marke: | IN WIN 805 Type-C Red |
| Lüfter: | Via Mainboard |
| Front: | 2x Corsair SP140 LED Red High Static Pressure |
| Heck: | 1x Corsair Air Series AF120 LED Red Quiet Edition |
| Unten: | 2x Corsair Air Series AF120 LED Red Quiet Edition |
| Netzteil: | Seasonic X-Series 760W fully Modular ATX 2.3
with Custom Red, White and Black Sleeves |
| Leistung: | 760W |
| Kühlung: | Hybrid Silent Fan Control (Semi-Passive) & Active PFC |
| Geräusch: | >16dB(A) |
| WirkGrad: | 80 PLUS GOLD (max. 92%) |
| so. Features: | |Aluminium & Tempered Glass
|Front Ports:
| 2 x USB 2.0
| 1 x USB 3.0
| 1 x USB 3.1 Type-C
| 2x HD Audio
|1x Removable HDD Cage
|8x Thumb Screw for glass panels
|1x Bottom Air Filter
————— |
| Bauart: | |ATX
|µATX
|Mini-ITX
—————
|
|
|
WaterCooling: |
Custom |
| Pumpe: | EK-D5 PWM G2 |
| Kühlkörper: | Copper |
| Ausgl.Beh.: | EK-XRES 140 Revo D5 mounted on EK-UNI Pump Bracket (120mm FAN) |
| Radiator: | EK-CoolStream CE 280 (Dual) @600rpm
EK-CoolStream SE 120 (Slim Single) @600rpm |
| Schläuche: | TUBE PrimoChill PrimoFlex™ Advanced LRT™ 12,7 / 9,5mm - Crystal Clear RETAIL 3m |
| Kühlmittel: | EK-Ekoolant EVO Blood RED |
| so. Features: | EK-ACF Fitting 10/13mm - Red/Black
|
|
Monitor: |
27" Acer Predator XB271HUbmiprz IPS (UM.HX1EE.005) |
| max. Aufl.: | 2560x1440 @ 144Hz |
| Reaktion: | 4ms |
| Helligkeit: | 350cd/m² |
| Kontrast: | |1.000:1 static
|100.000.000:1 dynamic
————— |
| Anschlüsse: | |1x HDMI 1.4
|1x DisplayPort 1.2
|4x USB-A 3.0
————— |
| Leistung: | |Typical: 71.5W
|Standby: 0,45W
————— |
| so. Features: | |White-LED
|Bluelight Filter
|Flicker-Free
|Slim Bezel
|ULMB
|6bit + FRC
|165Hz
|G-Sync
|2x 2W Speaker
—————
|
|
|
HardDisk: |
1x Western Digital WD My Book Essential New 1TB, USB 2.0 (WDBAAF0010HBK)
1x Western Digital WD My Passport Ultra 2TB, USB 3.0 (WDBMWV0020BBK)
1x Western Digital WD My Passport Ultra 2TB, USB 3.0 (WDBMWV0020BRD) |
|
CD / DVD: |
External USB 3.0 BD/DVD/CD Burner |
|
Router: |
FRITZ!Box 7490 |
CPU
55.005 kbit/s
Prozessor: Intel Core i7 6700K (delid @ Thermal Grizzly Conductonaut Liquid Metal)
Grafikkarte: nVidia GeForce GTX 1070 OC Water Cooled
Auflösung: 2560x1440 @ 144Hz, 32 Bit
Mainboard: MAXIMUS VIII FORMULA
Treiber: (ForceWare 369.09) / Win10 64
OS: Windows 10 Profssional 64Bit
